Electrical Fault Finding Tools: What Electricians Use

Electrical Fault Finding Tools: What Electricians Use

Quick Summary
See which tools electricians use for electrical fault finding, including voltage detectors, multimeters, insulation, loop, RCD and multifunction testers.
Written by Milad, Electrician at RCD Electrical LTD — NICEIC Approved Contractor AC200674
Updated:

Electricians use different tools for electrical fault finding because no single instrument can identify every fault. Common equipment includes two-pole voltage detectors, proving units, multimeters, continuity and insulation resistance testers, clamp meters, earth fault loop impedance testers, RCD testers and multifunction installation testers. The correct tool depends on the circuit, symptom and electrical measurement required.

Key Takeaways

  • A two-pole voltage detector and proving unit are used when confirming the presence or absence of voltage during safe isolation.
  • A multimeter can measure electrical values, but HSE guidance recommends a suitable test lamp or two-pole detector rather than a multimeter when simply proving whether voltage is present.
  • Continuity and insulation resistance testing help investigate conductor paths and insulation condition.
  • Loop impedance and RCD testing provide information about protective measures within the fixed installation.
  • Test results only become useful when they are interpreted alongside the circuit arrangement and the symptoms of the fault.

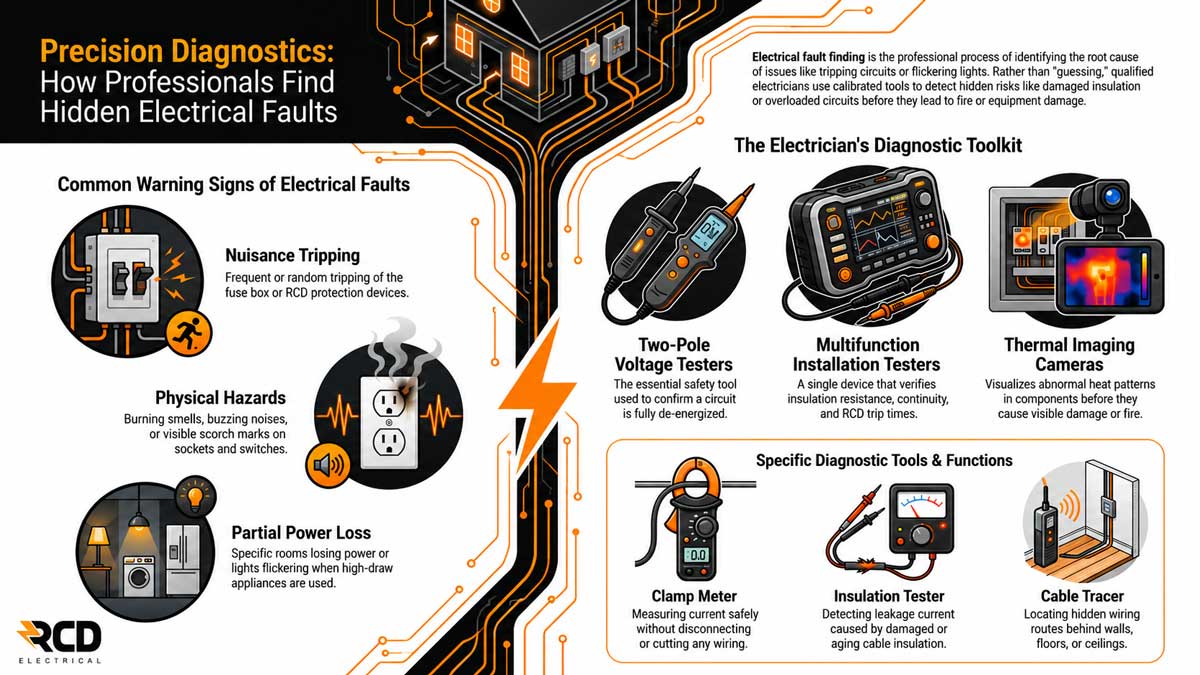

Which Tools Are Used for Electrical Fault Finding?

Electrical fault finding is a process of gathering evidence. An electrician normally starts with the reported symptom, identifies the affected part of the installation and then chooses tests that can confirm or rule out possible causes.

A circuit that repeatedly trips may require a different test sequence from a dead socket, intermittent power loss or damaged wiring. The instrument is therefore selected according to the question the electrician needs the test result to answer.

Tool Typical Purpose Where It May Help
Two-pole voltage detector Checking for the presence or absence of voltage Safe isolation and voltage verification
Proving unit Confirming that the voltage detector is operating Checking the detector before and after proving dead
Digital multimeter Measuring voltage, resistance and other supported values Comparing measurements during diagnosis
Continuity tester Measuring low resistance through conductors Checking conductor continuity and circuit paths
Insulation resistance tester Assessing insulation between conductors Investigating insulation deterioration or unwanted conductive paths
Clamp meter Measuring current around a conductor Load-current and selected leakage investigations
Earth fault loop impedance tester Measuring earth fault loop impedance Assessing the electrical fault path and protective measures
RCD tester Testing RCD operating characteristics Checking residual-current protection
Multifunction tester Combining several installation-testing functions Systematic testing of fixed electrical installations

Two-Pole Voltage Detector and Proving Unit

A two-pole voltage detector is used to establish whether voltage is present between test points. It is particularly important during safe isolation, where the electrician needs to verify that relevant conductors are no longer energised before work begins.

HSE GS38 guidance on electrical test equipment recommends a proprietary test lamp or suitable two-pole voltage detector, rather than a multimeter, where a test is simply being made to establish the presence or absence of voltage.

The detector itself also needs to be checked. GS38 recommends proving a device before and after use, preferably with a voltage proving unit, so a failed detector is not mistaken for a dead circuit.

Important: HSE guidance states that single-pole or non-contact voltage indicators can help identify live equipment, but they should not be used to prove that a circuit is dead.

Digital Multimeter

A digital multimeter is useful when an electrician needs an actual measurement rather than a simple live-or-dead indication. Depending on the instrument, it can measure voltage, resistance and other electrical quantities.

During fault diagnosis, readings can be compared at different points of a circuit or across a component to help establish where electrical conditions change. The measurement still has to be interpreted in relation to the circuit and the fault being investigated.

HSE guidance also stresses that the instrument, leads and probes must be suitable for the installation category and the voltage or current that may be present. Incorrect meter settings or unsuitable equipment can introduce serious hazards.

The detailed use of this instrument belongs to a separate topic. Our guide to using a multimeter for diagnosing electrical faults explains that process in more depth.

Continuity and Insulation Resistance Testers

Continuity Testing

Continuity testing measures resistance through a conductive path. Depending on the circuit and investigation, it can help establish whether conductors and protective paths remain electrically continuous.

Insulation Resistance Testing

Insulation resistance testing assesses insulation between conductors using a controlled DC test voltage. It can help reveal conditions that may indicate insulation deterioration or an unwanted conductive path.

These tests are normally performed with the relevant part of the installation isolated. Connected equipment also matters because some devices can affect the reading or may need to be disconnected or otherwise considered before an insulation resistance test is carried out.

The IET inspection and testing guidance explains that equipment such as SPDs, or other connected equipment that could influence the verification test or be damaged, must be considered when selecting the insulation resistance test method and voltage.

Multifunction, Loop Impedance and RCD Testers

Electricians testing fixed electrical installations often use a multifunction tester, commonly called an MFT. The functions available depend on the instrument, but an MFT can combine several installation tests within one unit.

Earth Fault Loop Impedance Testing

Earth fault loop impedance testing provides information about the electrical fault path. The result can be considered alongside the protective device and circuit characteristics when assessing the protective measures for that circuit.

RCD Testing

RCD test equipment is used to measure the operating characteristics required for the device and test being carried out. This can be relevant when residual-current protection forms part of the fault or installation assessment.

BS 7671:2018+A4:2026 was published on 15 April 2026 and is the latest amendment to the 18th Edition IET Wiring Regulations. IET and BSI stated that Amendment 4 could be implemented immediately, with the previous BS 7671:2018+A2:2022+A3:2024 version entering a six-month transition before withdrawal.

Current IET Amendment 4 inspection and testing guidance includes updated Guidance Note 3 for BS 7671:2018+A4:2026.

Clamp Meters, Thermal Imaging and Inspection Tools

Some electrical faults benefit from additional diagnostic tools rather than installation testing alone.

Clamp Meter

A clamp meter measures current around a conductor without disconnecting it. Depending on the instrument and investigation, this can help an electrician examine load current or selected leakage conditions.

Thermal Imaging Camera

Thermal imaging can help identify unusual temperature patterns at electrical connections, equipment or distribution components. It provides another diagnostic clue rather than replacing the electrical tests needed to establish the cause.

Socket and Polarity Test Equipment

Appropriate test equipment can be used to assess polarity and electrical conditions at socket outlets. The test selected depends on what needs to be confirmed and the type of circuit involved.

Visual Inspection Tools

A torch, inspection mirror and basic inspection aids can reveal useful clues such as heat marks, damaged insulation, loose components or previous alterations before electrical measurements begin.

How Does an Electrician Choose the Right Test?

The reported symptom determines the investigation. Repeated RCD tripping, a dead socket, intermittent power loss and a suspected cable fault do not automatically require the same tests.

An electrician normally narrows the problem progressively: identify the affected circuit or area, understand when the fault occurs, inspect accessible parts of the installation, isolate where required and then select measurements that can confirm or eliminate possible causes.

This is why electrical fault finding is different from simply taking meter readings. The instrument produces data; the electrician has to relate that data to the circuit arrangement, protective devices, connected equipment and the behaviour of the fault.

Our article on common electrical fault detection methods covers the diagnostic approaches themselves. The step-by-step electrical fault finding guide explains how those checks fit into a wider investigation.

Should Homeowners Use Electrical Fault Finding Test Equipment?

Homeowners can safely provide useful observations without carrying out electrical measurements. Note which lights, sockets or appliances are affected, whether a protective device has operated and what was happening immediately before the fault appeared.

Opening fixed electrical equipment or making live measurements is different. HSE guidance says electrical systems should be worked on dead wherever possible and identifies additional precautions for electrical testing and fault finding where measurements are required.

Test equipment must also be correctly rated, correctly configured and used with suitable probes and leads. A reading can be misleading or dangerous if the person carrying out the test does not understand the instrument, the circuit or the safe method of testing.

Practical safety point: do not use a multimeter, voltage pen or improvised tester as a substitute for a proper safe-isolation procedure. If diagnosis requires access to fixed wiring, the consumer unit or exposed conductors, professional testing is the safer next step.

The separate guide Can I Do Electrical Fault Finding Myself? covers the boundary between safe observations and electrical diagnosis in more detail.
