How to Find Electrical Faults in a Circuit Step by Step

What Does It Mean to Find a Fault in an Electrical Circuit?

Finding an electrical fault means moving from a symptom — such as repeated tripping, a dead socket or intermittent lighting — to evidence showing which part of the circuit is actually defective.

The visible symptom does not always identify the source. An RCD may trip because of a problem on one connected circuit, a socket may lose power because of a connection elsewhere, and an intermittent lighting problem may only appear under particular conditions.

Different fault types therefore require different diagnostic approaches. Open circuits, insulation faults, short circuits, damaged connections and faults involving connected equipment should not all be investigated in exactly the same way. The separate guide to types of electrical faults owns the deeper explanation of those fault categories.

Is Step-by-Step Fault Finding Suitable for DIY?

This process should be understood as a professional electrical diagnostic workflow, not as an instruction to carry out live testing yourself. HSE states that electrical testing requires additional knowledge and competence, and that work near exposed conductors should only proceed after the relevant conductors have been proven dead using appropriate test equipment.

Homeowners can record symptoms, note which protective device operates and report when the fault occurs. Removing accessories, disconnecting fixed wiring or using electrical test instruments on installation wiring requires a different level of competence.

The practical homeowner boundary is covered separately in Can I Do Electrical Fault Finding Myself?.

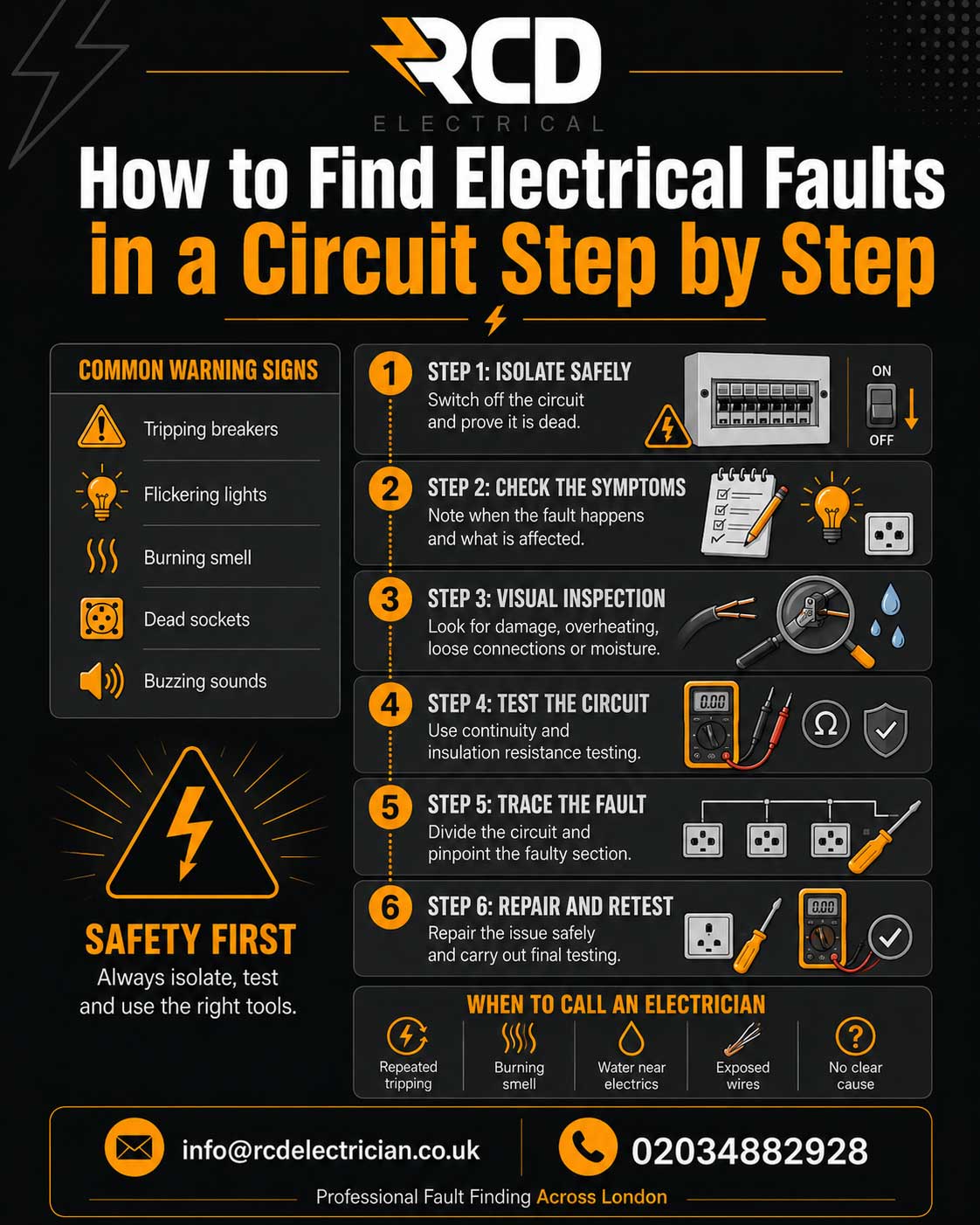

Step 1: Define the Fault Before Testing

Useful questions include:

• Is the fault permanent or intermittent?
• Does a particular RCD, RCBO or circuit breaker operate?
• Are all points on the circuit affected or only some?
• Does the problem appear when specific equipment is connected or switched on?
• Did it begin after drilling, renovation, water ingress or another change?
• Does weather or dampness appear to influence the fault?
• Are there signs of heat, discolouration, buzzing or damage?

This stage matters because the symptom determines which part of the installation should be investigated first. Good fault finding reduces the search area before test equipment is used.

Step 2: Identify the Circuit and Isolate It Safely

HSE guidance stresses that the isolation arrangement should prevent the supply being inadvertently re-energised while work is taking place. The person carrying out the work also needs to establish that the correct circuit has been isolated rather than relying only on labels or assumptions.

This distinction is particularly important where an installation has been altered over time, circuit descriptions are incomplete or more than one supply arrangement may be present.

Step 3: Inspect the Affected Circuit for Physical Clues

A clean visual appearance does not prove the circuit is electrically sound. Broken conductors, deteriorated insulation and faults within concealed wiring can require electrical testing to identify.

Step 4: Choose Tests That Match the Suspected Fault

Depending on the symptoms and circuit, a competent electrician may use tests concerned with conductor continuity, insulation condition, polarity, protective conductors or protective-device operation. The selection and interpretation of those tests depends on the installation.

IET guidance on inspection and testing emphasises selecting appropriate tests for the protective measures present and reducing unnecessary live testing where the information can be obtained safely by other means.

The instruments themselves are covered in the dedicated article What Tools Are Used for Electrical Fault Finding?, so this guide keeps the focus on diagnostic sequence rather than becoming a test-equipment manual.

Step 5: Check Conductor Integrity Where Relevant

This can be relevant where part of a circuit has stopped working, where a conductor may be damaged, or where test results suggest a break or connection problem.

The important point is not simply obtaining a meter reading. The result needs to be interpreted against the circuit arrangement, expected conductor path and other evidence from the installation.

A general-purpose multimeter can be useful for some diagnostic tasks, but it is not a substitute for the appropriate installation test equipment or competence. The separate guide on using a multimeter for electrical fault diagnosis owns that narrower tool-specific topic.

Step 6: Assess Insulation Condition Where the Fault Indicates It

This type of testing requires the circuit to be prepared appropriately. Connected electronic equipment, controls or other components can affect how the test should be carried out and may need to be considered before a test voltage is applied.

A result showing an insulation problem identifies that a deficiency exists, but it does not automatically identify its physical location. The next stage is often to reduce the circuit into smaller testable sections.

The IET makes a useful distinction here: identifying a concerning result during an inspection is not the same as locating its underlying cause. Tracing the reason for that result is fault finding.

Step 7: Divide the Circuit to Narrow Down the Fault

This is one of the most useful principles in professional fault finding. Rather than replacing multiple accessories or following the cable route blindly, the electrician uses successive test results to separate unaffected sections from the part still showing the abnormal condition.

The principle is simple: each useful test should reduce uncertainty. If a test result does not help distinguish one possible cause from another, it may not be the most useful next test.

Step 8: Repair the Confirmed Fault and Verify the Circuit

The repair depends on what was actually found. A local connection problem, damaged accessory or isolated cable defect is different from widespread deterioration affecting a larger part of the installation.

Final verification should relate to the work carried out and the protective measures involved. Where live testing is genuinely necessary, it should be limited to the tests required and performed with suitable precautions by someone competent to do so.

How Is Fault Finding Different from an EICR?

Fault finding investigates the cause of a specific electrical problem; an EICR assesses the condition of an existing electrical installation within an agreed inspection scope.

The IET explicitly distinguishes periodic inspection and testing from fault finding. An EICR may identify a defect or a result that requires further investigation, but tracing the physical cause of that problem can become a separate fault-finding exercise.

This distinction matters because a homeowner with one circuit repeatedly tripping does not necessarily need a whole-property condition report simply to locate that individual fault.

What Has Changed with BS 7671 in 2026?

BS 7671:2018+A4:2026 was published on 15 April 2026. The IET states that BS 7671:2018+A2:2022+A3:2024 remains valid during the transition period until 15 October 2026, after which Amendment 4 becomes the applicable version.

The transition does not change the basic diagnostic principle described here: testing should be appropriate to the installation, danger should be avoided, and live testing should not be carried out unnecessarily.

For fault finding specifically, the current IET guidance also reinforces the boundary between condition reporting and subsequent investigation of the underlying cause.

When Should Professional Fault Finding Be Arranged?

Professional diagnosis is appropriate where the source of the problem is unknown and proper electrical testing is needed to identify it.

Typical situations include:

• an RCD, RCBO or breaker repeatedly operating;
• part of a circuit losing power;
• an intermittent electrical problem that keeps returning;
• a socket or lighting circuit failing without an obvious cause;
• electrical problems linked to damp or weather;
• a suspected wiring or connection fault;
• test results from another inspection indicating that further diagnosis is needed.

Where targeted diagnosis is required, RCD Electrical's electrical fault finding in London service covers circuit testing, fault tracing and repair where the cause can be addressed during the visit.
